FreeCAD MCP Plugin

The FreeCAD MCP plugin integrates the Model Control Protocol (MCP) into FreeCAD, enabling automation of model creation, macro execution, and view management through a server-client architecture. It provides a GUI control panel and a command-line client to streamline FreeCAD workflows, supporting tasks like creating/running macros, adjusting views, and integrating with external tools (e.g., Claude, Cursor, Trace, CodeBuddy).

FreeCAD MCP Icon

Table of Contents

Features

The FreeCAD MCP plugin (v0.1.0) offers the following features:

  • MCP Server: Provides a GUI control panel (FreeCADMCPPanel) and processes commands like create_macro, update_macro, run_macro, set_view, and get_report (implemented in freecad_mcp_server.py).
  • MCP Client: Command-line tool to send commands via stdio or TCP, manage .FCMacro files (create, update, run, validate), and control FreeCAD remotely (implemented in freecad_mcp_client.py).
  • Macro Normalization: Automatically adds imports (FreeCAD, FreeCADGui, Part, math) and post-execution steps (recompute, view adjustment) for macros.
  • GUI Control Panel: Includes buttons to start/stop the server, clear logs, and switch views (front, top, right, axonometric).
  • Logging System: Records messages and errors to freecad_mcp_log.txt in the temporary directory (e.g., %TEMP%\freecad_mcp_log.txt) and a GUI report browser (100-line limit).
  • Workbench Integration: Adds a FreeCADMCPWorkbench with toolbar and menu commands (implemented in InitGui.py).
  • Visual Assets: Includes workbench icon (icon.svg), example models (gear.png, flange.png, boat.png, table.png), and demo animation (freecad.gif, freecad.mp4).

Watch the demo animation: freecad - Freecad MCP by ATOI-Ming Download the demo video: FreeCAD MCP Demo MP4

Quick Start

  1. Install the plugin (see Installation).
  2. Launch FreeCAD and switch to the FreeCAD MCP workbench.
  3. Open the control panel (FreeCAD_MCP_Show) and click "Start Server."
  4. Run an example macro:
    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --run-macro gear.FCMacro --params '{"radius": 15}'
  5. View the result: A gear model is generated and displayed in axonometric view.

Installation

Prerequisites

  • FreeCAD: Version 0.21 or higher, Download FreeCAD. Select the version for your operating system.
  • Python: Version 3.12+ (included with FreeCAD or installed via Anaconda).
  • Anaconda (recommended for dependency management): Download Anaconda. Select the version for your operating system.
  • Python Dependencies:
    • Required packages: mcp-server>=1.2.0, httpx>=0.24.1 (specified in pyproject.toml).
    • Installation commands:
      # Create and activate Anaconda environment
conda create -n freecad_mcp python=3.12
conda activate freecad_mcp
pip install mcp-server>=1.2.0 httpx>=0.24.1
# Or use system Python
python -m pip install mcp-server>=1.2.0 httpx>=0.24.1
    • Verify installation:
      pip show mcp-server httpx
      Ensure mcp-server version is >=1.2.0 and httpx version is >=0.24.1.

Installation Steps

  1. Clone the Repository:

    git clone https://github.com/ATOI-Ming/FreeCAD-MCP.git

  2. Copy to FreeCAD Mod Directory: Copy the FreeCAD-MCP folder to:

    • Windows: D:\FreeCAD\Mod\FreeCAD-MCP
    • Linux: ~/.local/share/FreeCAD/Mod/FreeCAD-MCP
    • macOS: ~/Library/Application Support/FreeCAD/Mod/FreeCAD-MCP
    # Windows example
xcopy FreeCAD-MCP D:\FreeCAD\Mod\FreeCAD-MCP /E /H /C /I

    Note: Adjust D:\FreeCAD\Mod based on your FreeCAD installation path.

  3. Launch FreeCAD:

    • Open FreeCAD and switch to the FreeCAD MCP workbench (icon: assets/icon.svg).
    • Verify that FreeCAD-MCP is loaded in Edit > Preferences > Add-ons.

  4. Verify Installation:

    • Click FreeCAD_MCP_Show to open the control panel.
    • Check the temporary directory (e.g., %TEMP%\freecad_mcp_log.txt) for startup messages.

MCP Configuration

Configure the MCP client to communicate with FreeCAD via stdio or TCP.

  1. Create Configuration File: Create mcp_config.json in D:\FreeCAD\Mod\FreeCAD-MCP-main\src\:

    {
    "mcpServers": {
        "freecad": {
            "disabled": false,
            "timeout": 60,
            "type": "stdio",
            "command": "D:\\Anaconda3\\python.exe",
            "args": ["D:\\FreeCAD\\Mod\\FreeCAD-MCP-main\\src\\freecad_mcp_client.py"]
        }
    }
}

    Note:

    • Adjust paths based on your system:
      • Anaconda Path: e.g., C:\Anaconda3\python.exe (Windows), /home/<user>/anaconda3/bin/python (Linux), /Users/<user>/anaconda3/bin/python (macOS).
      • FreeCAD Mod Path: e.g., C:\Users\<YourUser>\AppData\Roaming\FreeCAD\Mod\FreeCAD-MCP (Windows), /home/<user>/.local/share/FreeCAD/Mod/FreeCAD-MCP (Linux), /Users/<user>/Library/Application Support/FreeCAD/Mod/FreeCAD-MCP (macOS).
    • For TCP communication, set "type": "tcp", add "host": "localhost", and "port": 9876.

  2. Run the Server:

    • GUI Method: In the FreeCAD MCP workbench, click FreeCAD_MCP_Show and then "Start Server."
    • Command-Line Method:
      conda activate freecad_mcp
python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_server.py

  3. Verify Server:

    • Check %TEMP%\freecad_mcp_log.txt for a "Server started" message.
    • Test a client command:
      python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --get-report

Usage

GUI Usage

  1. In FreeCAD, switch to the FreeCAD MCP workbench (icon: assets/icon.svg).
  2. Click FreeCAD_MCP_Show to open the control panel (FreeCADMCPPanel).
  3. Use the control panel:
    • Start/Stop Server: Control the MCP server.
    • Clear Logs: Clear the report browser and %TEMP%\freecad_mcp_log.txt.
    • View Switching: Select front, top, right, or axonometric views.
  4. Run a macro:
    • Click FreeCAD_MCP_RunMacro, select an .FCMacro file, and execute it with automatic normalization.

Command-Line Usage

  1. Activate the Anaconda environment:
    conda activate freecad_mcp
  2. Run client commands:
    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py <command>
    Examples:
    • Create macro: --create-macro my_macro --template-type part
    • Run macro: --run-macro my_macro.FCMacro --params '{"radius": 10}'
    • Set view: --set-view '{"view_type": "7"}'
    • Get report: --get-report

Tool Functions

The following tool functions are provided by freecad_mcp_client.py, sending commands via stdio or TCP (localhost:9876), processed by freecad_mcp_server.py.

| Function | Parameters | Description | |-----------------------|-----------------------------------------|----------------------------------------------------------------------| | create_macro | macro_name, template_type | Creates an .FCMacro file, validates name (letters, numbers, underscores, hyphens), supports templates (default, basic, part, sketch). | | update_macro | macro_name, code | Updates macro content, auto-adds FreeCAD, FreeCADGui, Part, math imports. | | run_macro | macro_path, params (optional) | Runs a macro, normalizes code, recomputes document, adjusts to axonometric view. | | validate_macro_code | macro_name (optional), code (optional) | Validates macro code syntax, returns success or error (with traceback). | | set_view | params (e.g., {"view_type": "7"}) | Sets view: 1 (front), 2 (top), 3 (right), 7 (axonometric). | | get_report | None | Retrieves server logs (from %TEMP%\freecad_mcp_log.txt and report browser). |

Examples

  • Create Macro:

    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --create-macro gear --template-type part

    Output: {"status": "success", "result": "Macro created"}

  • Update Macro:

    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --update-macro gear --code "import FreeCAD, Part\nradius = 10\ngear = Part.makeCylinder(radius, 5)\nPart.show(gear)"

    Output: {"status": "success", "result": "Macro updated"}

  • Run Macro:

    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --run-macro gear.FCMacro --params '{"radius": 15}'

    Output: {"status": "success", "result": {...}}

  • Validate Code:

    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --validate-macro-code gear --code "import FreeCAD\nApp.newDocument()"

    Output: {"status": "success"}

  • Set View:

    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --set-view '{"view_type": "7"}'

    Output: {"status": "success", "result": "view set to axonometric"}

  • Get Report:

    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --get-report

    Output: {"status": "success", "result": {...}}

Use Cases

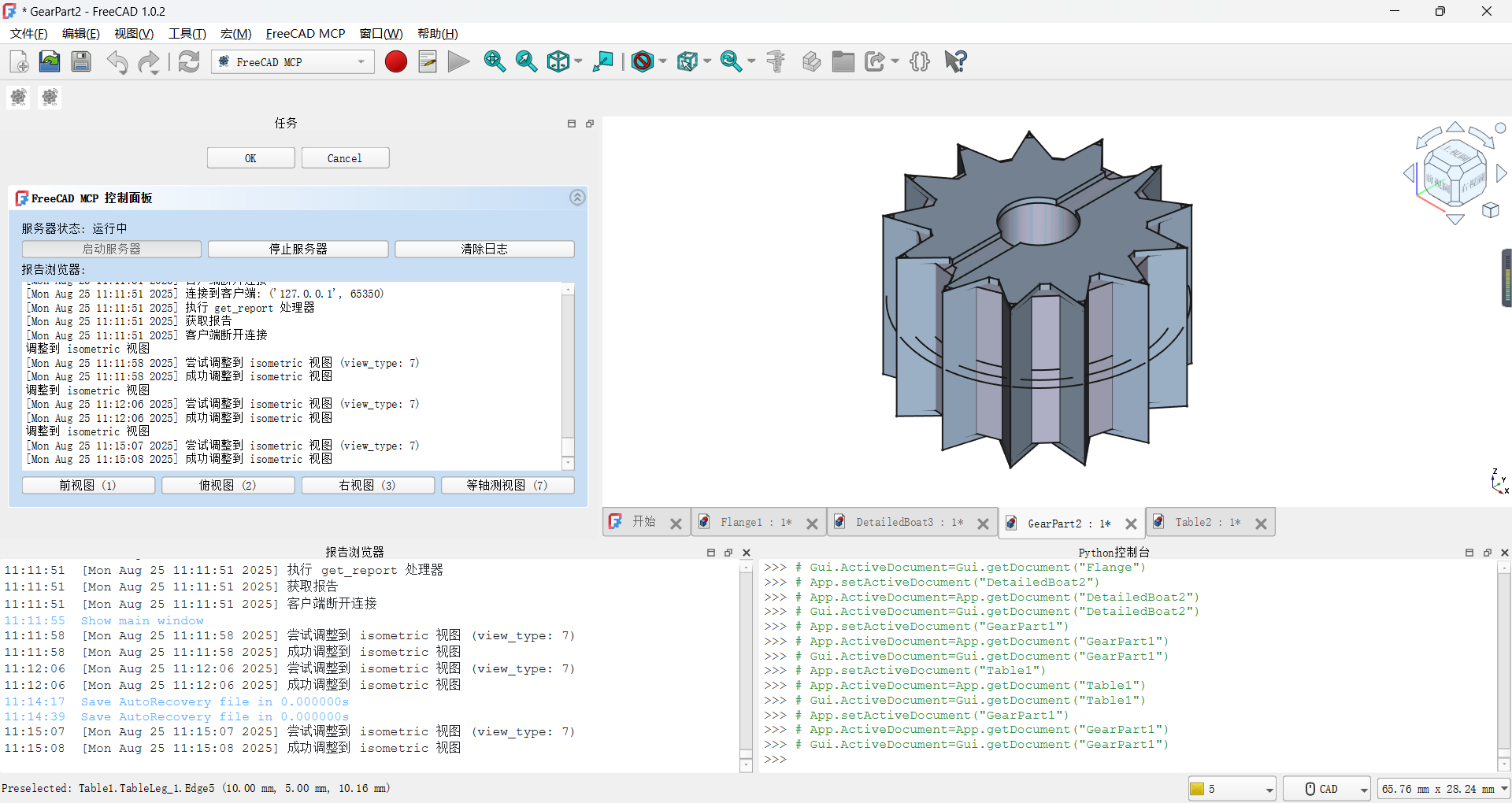

  1. Automated Gear Model Creation:

    • Scenario: Generate a parametric gear model for engineering design.
    • Steps:
      1. Create macro: --create-macro gear --template-type part
      2. Update macro: --update-macro gear --code "import FreeCAD, Part\nradius = 15\ngear = Part.makeCylinder(radius, 5)\nPart.show(gear)"
      3. Run macro: --run-macro gear.FCMacro --params '{"radius": 15}'
    • Result: Gear model generated, displayed in axonometric view.
    • Output: Gear Model

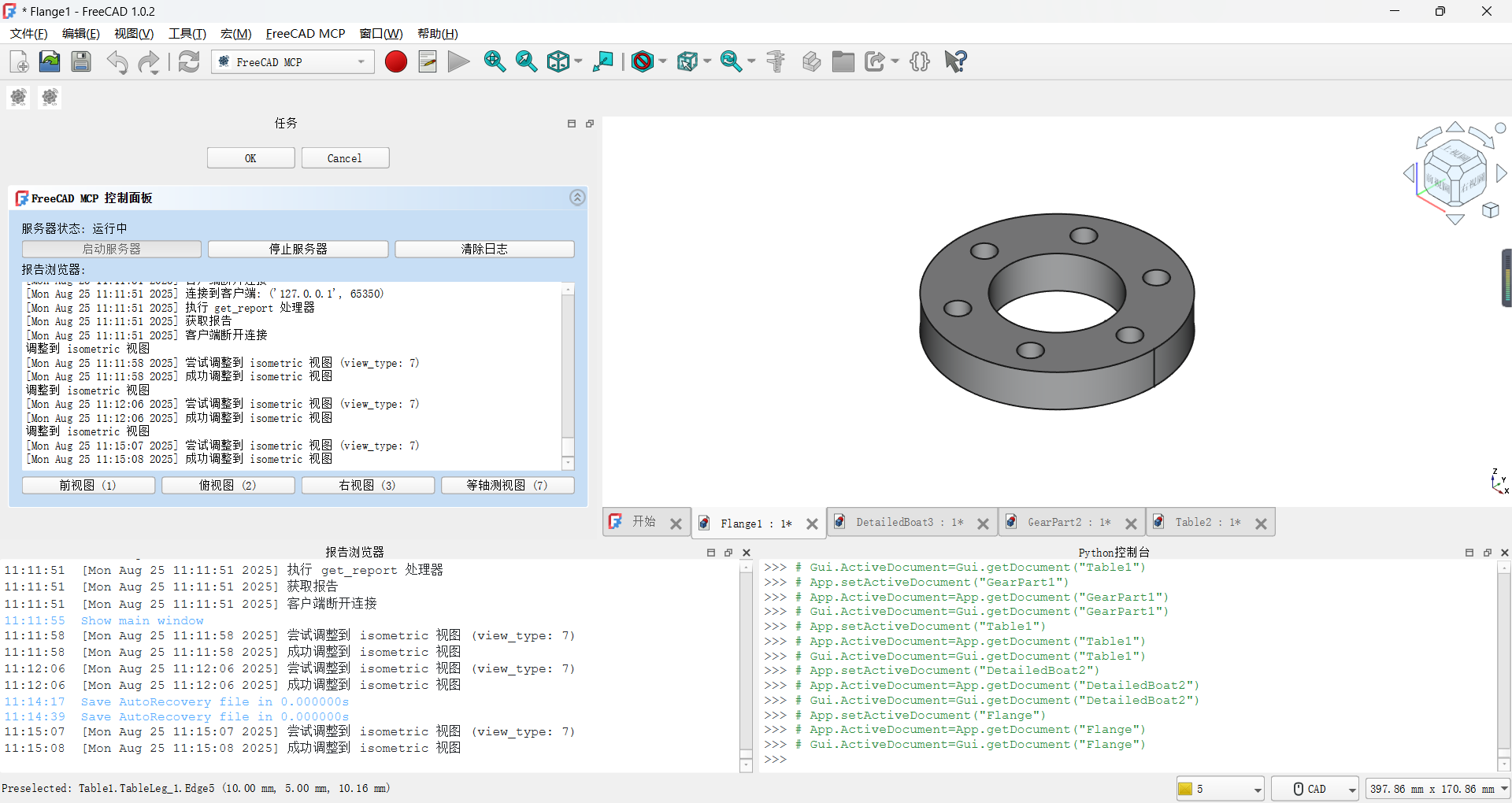

  2. Generating a Flange Model:

    • Scenario: Automate creation of a flange with holes for mechanical design.
    • Steps: Run macro: --run-macro flange.FCMacro
    • Result: Flange model generated with automatic normalization.
    • Output: Flange Model

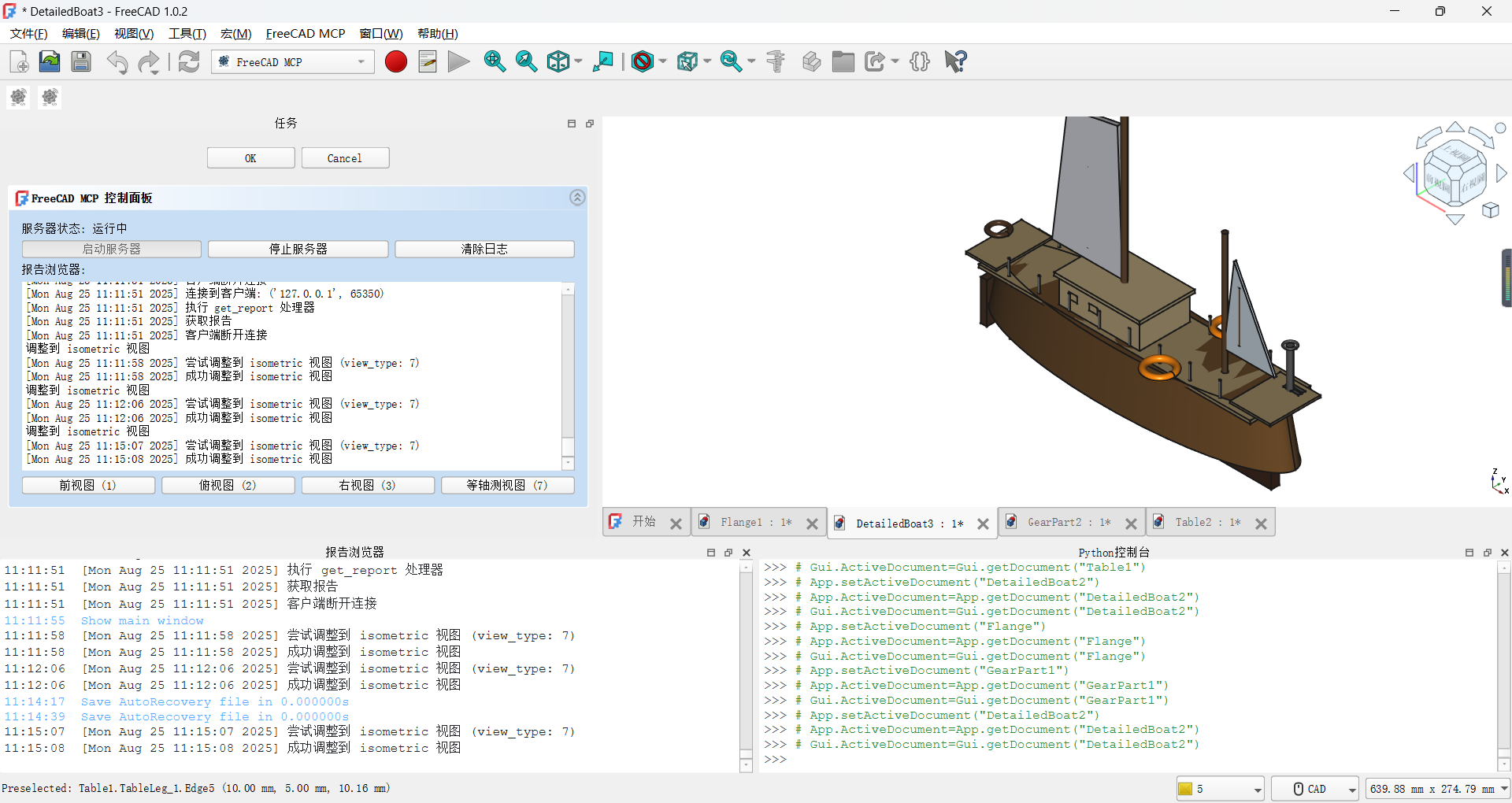

  3. Text-Based Model Generation:

    • Scenario: Generate a boat model from a text description (e.g., "create a boat with a curved hull").
    • Steps:
      1. Use Claude to generate boat.FCMacro.
      2. Run macro: --run-macro boat.FCMacro
    • Result: Boat model generated with automatic view adjustment.
    • Output: Boat Model

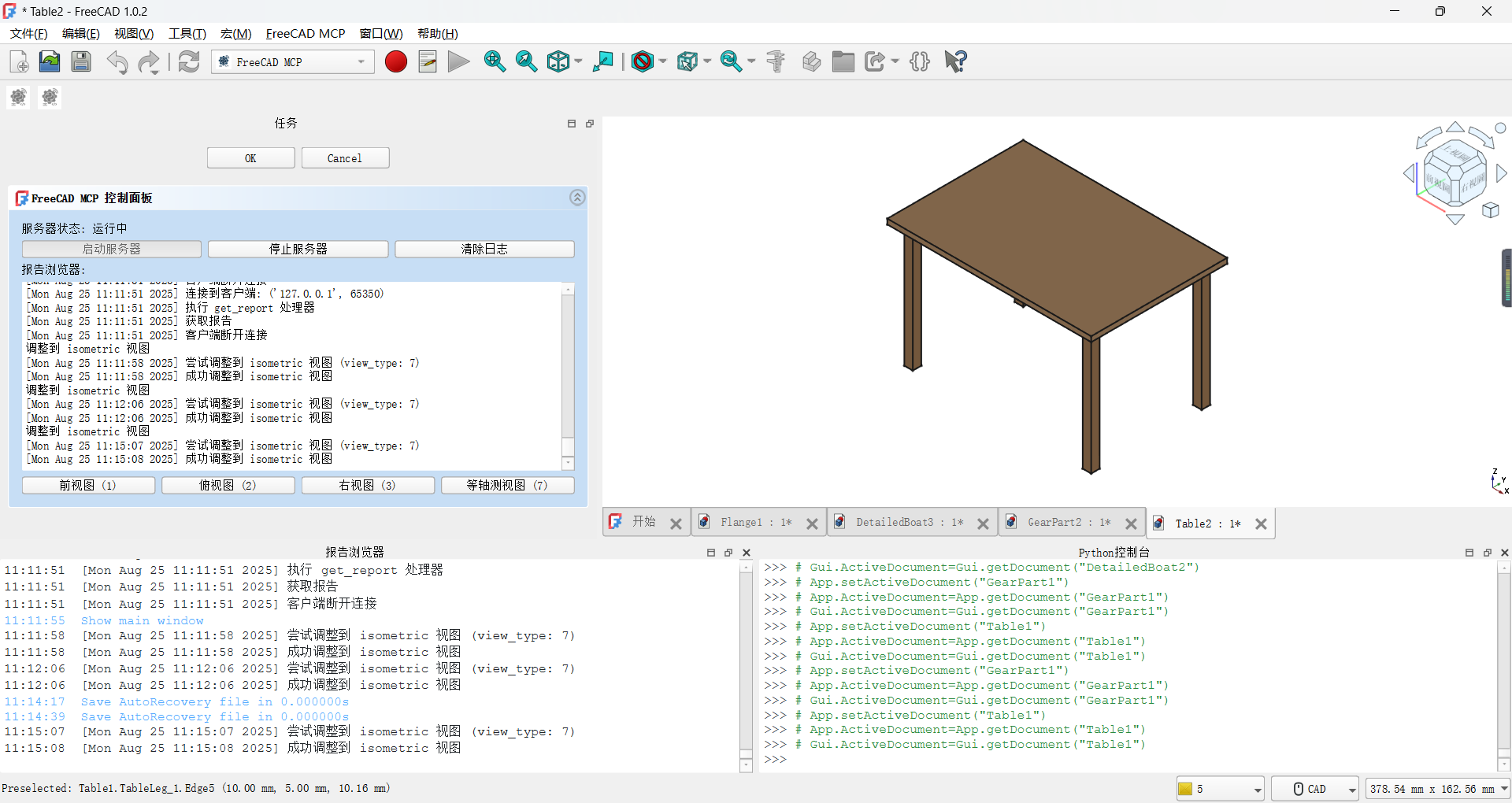

  4. CAD Drawing Recognition:

    • Scenario: Recreate a table model from a CAD drawing.
    • Steps:
      1. Use Trace to convert drawing to table.FCMacro.
      2. Run macro: --run-macro table.FCMacro
    • Result: Table model generated.
    • Output: Table Model

  5. Batch Processing Models:

    • Scenario: Automate creation of multiple models (e.g., gear and flange).
    • Steps:
      for macro in gear.FCMacro flange.FCMacro; do
    python D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py --run-macro $macro
done
    • Result: Models generated sequentially, logged to %TEMP%\freecad_mcp_log.txt.
    • Output: See gear.png and flange.png.

External Tool Integration

FreeCAD MCP supports integration with external tools to enhance model generation:

  • Claude: AI model for generating .FCMacro files from text descriptions.
    • Example: Input "create a gear with 10mm radius," generates:
      import FreeCAD, Part
radius = 10
gear = Part.makeCylinder(radius, 5)
Part.show(gear)
      Save as gear.FCMacro, run: --run-macro gear.FCMacro.
  • Trace: CAD drawing processing tool to convert drawings to .FCMacro files.
    • Example: Convert a table drawing to table.FCMacro, run: --run-macro table.FCMacro.
  • Cursor/CodeBuddy: Code editing tools for writing and debugging macro code.
    • Example: Edit flange.FCMacro in Cursor, update: --update-macro flange.FCMacro --code "<code>".

Assets

The assets/ directory contains the following resources:

  • icon.svg: Icon for FreeCADMCPWorkbench, used in InitGui.py and package.xml. FreeCAD MCP Icon
  • gear.png: Example gear model. Gear Model
  • flange.png: Example flange model. Flange Model
  • boat.png: Example boat model. Boat Model
  • table.png: Example table model. Table Model
  • freecad.gif: Demo animation showing GUI panel, macro execution, and view switching. Demo Animation
  • freecad.mp4: Demo video, available for download. Download: FreeCAD MCP Demo MP4

Troubleshooting

  • Server Fails to Start:
    • Issue: Port 9876 is in use.
    • Solution: Check port (netstat -ano | findstr 9876), change port, or terminate conflicting process.
  • Client Connection Failure:
    • Issue: Incorrect paths in mcp_config.json.
    • Solution: Verify command and args paths, e.g., D:\Anaconda3\python.exe and D:\FreeCAD\Mod\FreeCAD-MCP-main\src\freecad_mcp_client.py.
  • Macro Execution Errors:
    • Issue: Syntax errors or missing imports in macro code.
    • Solution: Use --validate-macro-code to check code, review traceback in %TEMP%\freecad_mcp_log.txt.
  • Log File Not Generated:
    • Issue: No write permission in temporary directory.
    • Solution: Check permissions for %TEMP%\freecad_mcp_log.txt, or specify another path in freecad_mcp_server.py.
  • More Help: Submit issues on GitHub (Bug Tracker).

Contributing

Contributions are welcome! Follow these steps:

  1. Fork the repository: https://github.com/ATOI-Ming/FreeCAD-MCP.
  2. Create a branch: git checkout -b feature/your-feature.
  3. Commit changes: git commit -m "Add your feature".
  4. Push and create a Pull Request.

For questions or collaborations, please open an issue or contact [1757772673@qq.com,抖音：huhushuxue95]

License

This project is licensed under the MIT License. See LICENSE for details.
