SWMF MCP Prototype Server

A small, demoable MCP server for SWMF-oriented workflows.

Intro (for friends new to MCP)

If you have never used MCP before, think of this project as a safe translator between a chat assistant and SWMF workflows.

• You ask a question in plain language, like "is my PARAM.in valid?"
• The assistant calls a specific server tool (for example swmf_validate_param)
• The tool runs only the allowed logic and returns structured results
• You get actionable feedback without giving the assistant unrestricted shell access

What MCP means here:

• MCP (Model Context Protocol) is just the bridge that lets an AI assistant call named tools with typed inputs
• This repository implements those tools for SWMF tasks (validation, explanation, setup guidance, quickrun helpers)
• Safety is intentional: narrow tool contracts instead of open-ended command execution

In short: this server makes SWMF support feel conversational while keeping behavior explicit, inspectable, and safer for demos.

This prototype is intentionally narrow and safe:

• no arbitrary shell execution
• no arbitrary file writes
• no repo-wide re-indexing
• focused on SWMF-specific read / validate / suggest workflows

Requirements

• Python 3.11+
• uv (recommended) or pip

Install

Using uv (recommended)

uv venv
source .venv/bin/activate
uv sync

Using pip and venv

python -m venv .venv
source .venv/bin/activate
pip install -e .

SWMF source link

Create a soft link to SWMF in the project root:

ln -s /path/to/SWMF SWMF

Usage

Once installed and connected in MCP, you can ask natural-language questions in chat and the assistant will call SWMF tools.

Examples:

• "Validate this PARAM.in for Frontera before I waste a run. Don't try to fix."
• "Explain #COMPONENTMAP"
• "plot the beginning, intermediate and last frames of IH z=0 cut. plot func U. save them as separate images. use swmf-mcp-prototype."
• "Animate U in SC z=0 cuts with swmf-mcp-prototype and save as SC_z=0_U.mp4 video."
• "Prepare a new run for background solarwind with mrzqs1908*.fits GONG map and with AWSoM model in Run_Min folder. Use 1.0e6 for Poynting flux."

VS Code MCP config

IDL extension and MCP for VS Code is recommended. Get it from VS Code extension store.

1. Locate your workspace folder.
2. Edit .vscode/mcp.json. Example MCP server config with swmf_root:

{
	"servers": {
		"swmf-prototype": {
			"command": "python",
			"args": ["-m", "swmf_mcp_server.server"],
			"cwd": "/absolute/path/to/swmf-mcp-prototype",
			"env": {
				"swmf_root": "/absolute/path/to/SWMF"
			}
		}
	}
}

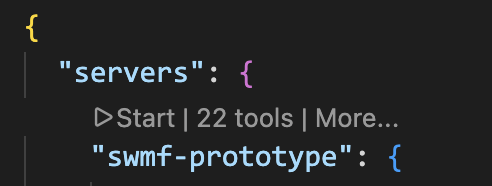

3. Click on "Start" to start SWMF MCP server.

4. Now open Github Copilot and chat. You shall see swmf-prototype in Configure Tools.. menu.

Implemented tools:

• swmf_validate_param
• swmf_run_testparam
• swmf_detect_setup_commands
• swmf_apply_setup_commands
• swmf_infer_job_layout
• swmf_explain_param
• swmf_prepare_build
• swmf_prepare_run
• swmf_prepare_idl_workflow
• swmf_prepare_component_config
• swmf_explain_component_config_fix
• swmf_inspect_fits_magnetogram
• swmf_prepare_sc_quickrun_from_magnetogram
• swmf_validate_external_inputs
• swmf_generate_param_from_template
• swmf_list_tool_capabilities
• swmf_list_available_components
• swmf_find_param_command
• swmf_get_component_versions
• swmf_find_example_params
• swmf_trace_param_command
• swmf_diagnose_param

Fast Diagnosis Path

swmf_diagnose_param is a diagnosis-first, one-call workflow designed for troubleshooting speed.

Pipeline stages:

• Stage 1: resolve SWMF root, run directory, and PARAM input once.
• Stage 2: run cheap preflight checks (external references + lightweight PARAM parser checks + required component inference).
• Stage 3: run authoritative Scripts/TestParam.pl whenever possible.
• Stage 4: synthesize likely root cause, fastest likely fix, and recommended commands.

Returned diagnosis payload includes:

• summary
• root_causes
• fastest_likely_fix
• authoritative_result
• recommended_commands
• recommended_next_step
• authority_by_field

Fast-path behavior:

• If nproc is omitted and job-layout inference fails, diagnosis falls back to nproc=1 to still attempt authoritative validation instead of stopping early.
• If only param_text is provided (no param_path), preflight still runs, but authoritative execution is marked as not executed with an explicit reason.

Execution context rules:

• SWMF top-level helpers (for example Scripts/TestParam.pl, Config.pl) are launched with working directory at the resolved SWMF source root.
• Run-directory helpers (for example Restart.pl, PostProc.pl) can run from a run directory when that workflow expects run-local context.
• This distinction matters because TestParam.pl expects top-level SWMF files (for example Config.pl, PARAM.XML) relative to launch context.

Performance notes for authoritative validation:

• swmf_run_testparam and swmf_diagnose_param use a fast default nproc=1 when nproc is omitted and no job_script_path is provided.
• Job-layout inference is only attempted when job_script_path is explicitly provided.
• swmf_run_testparam caches recent authoritative results for unchanged inputs (swmf_root, param_path, requested nproc) and returns from_cache: true on cache hits.

Architecture (layered)

Request Flow Diagram

%%{init: {'flowchart': {'curve': 'basis'}}}%%
flowchart TB
    U["User in Chat"] --> A["AI Assistant"]
    A -->|MCP tool call| S["SWMF MCP Server"]

    S --> T["Tool Layer"]
    T --> V["Service Layer"]
    V --> P["Parsing + Discovery + Catalog"]

    P --> X["SWMF Sources"]
    X --> P

    K["Curated Knowledge"] --> V

    T -->|structured response| A
    A --> U

    subgraph Inputs
        K
        X
    end

    subgraph Layers
        T
        V
        P
    end

The server is now a thin MCP adapter over explicit subsystems:

• src/swmf_mcp_server/server.py
  • MCP registration and request mapping only
  • no XML parsing, no template scanning, no TestParam subprocess assembly
• src/swmf_mcp_server/core/
  • typed models, authority/source-kind constants, config defaults, error payload helpers
• src/swmf_mcp_server/discovery/
  • SWMF root detection with explicit arg/env/run-dir and workspace symlink-aware heuristics
  • filesystem safety helpers and mtime utilities
• src/swmf_mcp_server/catalog/
  • unified source-catalog construction with mtime cache invalidation
  • XML command indexing, component/version discovery, script indexing, template/example indexing, IDL macro discovery
• src/swmf_mcp_server/parsing/
  • lightweight PARAM parser
  • component-map expansion checks
  • external-reference extraction
  • scheduler/job layout inference
• src/swmf_mcp_server/services/
  • explain_service.py: authoritative-first explain flow with curated enrichment
  • retrieve_service.py: component/version/command/example retrieval and tracing
  • validation_service.py: lightweight validation and unresolved-reference classification
  • testparam_service.py: authoritative Scripts/TestParam.pl execution only
  • build_service.py: build/config planning and component-config guidance
  • run_service.py: starter PARAM generation, setup command detection/execution, job-layout orchestration
  • template_service.py: template selection and adaptation
  • solar_quickrun_service.py: isolated non-authoritative solar quickrun heuristics
  • idl_service.py: IDL and FITS helper workflows
• src/swmf_mcp_server/knowledge/curated.py
  • small hand-authored summaries only (not authoritative semantics)

Source Of Truth Policy

The server explicitly reports source provenance and authority for explain/retrieval outputs.

Source kinds used in responses include:

• curated
• PARAM.XML
• component PARAM.XML
• example PARAM.in
• TestParam.pl
• manual/docs (when applicable)

Authority levels:

• heuristic: convenience-only or curated fallback
• derived: deterministic extraction from examples/templates
• authoritative: direct metadata from PARAM.XML / component PARAM.XML, or TestParam execution

swmf_explain_param behavior:

• first queries indexed authoritative XML sources
• then enriches with curated summaries when available
• returns source paths, source kinds, defaults/ranges/allowed values when extractable

swmf_validate_param behavior:

• remains safe/lightweight parser mode
• distinguishes:
  • syntax/structure errors
  • inferred issues
  • unresolved external references
  • explicit requires_authoritative_validation
• authoritative path remains swmf_run_testparam

Every major explain/retrieve/validation/testparam response includes:

• authority
• source_kind
• source_paths
• swmf_root_resolved

What Remains Heuristic

These areas are intentionally heuristic and marked in tool outputs:

• quickrun generation from magnetogram metadata
• natural-language IDL visualization request parsing
• template patching suggestions when constructing quick-run PARAM text

Authoritative validation and semantics still require:

• Scripts/TestParam.pl
• SWMF PARAM.XML definitions
• component-specific docs and real run-time checks

Path-aware inputs for run-directory workflows:

• swmf_root tool argument
• SWMF_ROOT environment variable
• run_dir local heuristics

What this prototype is for

This server is meant to feel like an SWMF-aware assistant for a group demo.

It focuses on the SWMF workflow around:

• Config.pl
• PARAM.in
• PARAM.XML
• Scripts/TestParam.pl
• make rundir
• Restart.pl
• PostProc.pl

It does not replace real SWMF validation. The authoritative SWMF-side checks still come from:

• PARAM.XML
• Scripts/TestParam.pl

SWMF root resolution

Tools that need SWMF context resolve the source tree in this order:

1. explicit swmf_root argument
2. SWMF_ROOT environment variable
3. local run_dir heuristics and workspace-relative symlink candidates:
   • run_dir
   • run_dir.parent
   • run_dir.parent.parent
   • workspace children/symlinks that resolve to SWMF marker layout

The server only accepts a candidate as SWMF root when all of these markers exist:

• Config.pl
• PARAM.XML
• Scripts/TestParam.pl

If resolution fails, tool responses return:

• ok: false
• hard_error: true
• a concise message
• how_to_fix guidance
• swmf_root_resolved: null

No unrestricted full-filesystem crawl is performed.

Working from a separate run directory

You can call tools while your current shell/editor location is a run directory outside the SWMF source tree.

Recommended approaches:

• pass swmf_root explicitly in the tool call
• set SWMF_ROOT once in MCP server environment
• pass run_dir so local parent checks can resolve SWMF safely

For swmf_validate_param:

• provide param_text directly, or
• provide param_path
• if both are provided, param_text is used
• relative param_path resolves relative to run_dir when provided, otherwise current working directory
• this tool is lightweight parser-only and does not run TestParam.pl
• for authoritative SWMF validation, use swmf_run_testparam

IDL workflow prepare tools

swmf_prepare_idl_workflow is a safe, demo-focused planner for SWMF IDL macro workflows covered by the IDL manual.

Deterministic calling contract:

• provide task when possible (recommended for agents)
• request is optional helper text
• at least one of task or request is required

Supported workflow families:

• read snapshots (read_data, show_data)
• plot fields (plot_data, common plotmode values)
• animate output files (animate_data, movie options)
• export plots/animations in requested format (output_format) and artifact namespace (artifact_name)
• transform grids (transform with regular/polar/unpolar/sphere heuristics)
• compare datasets (compare, optional difference plotting)
• read and plot logs (read_log_data, plot_log_data)

Generic output controls for both IDL tools:

• output_format: none, png, jpeg, bmp, tiff, ps, mp4, mov, avi
• artifact_name: output namespace or basename
• preview: whether to show interactive animation when supported
• frame_indices: optional explicit frame index list for animation sampling

Animation/movie optimization in the generic tool:

• when output_format is mp4, mov, or avi, generated IDL uses videofile and videorate
• when output_format is image-based (png, jpeg, bmp, tiff, ps), generated IDL uses moviedir

Important plot export note:

• For task='plot', SWMF IDL set_device writes PostScript output.
• Non-PS image outputs for plot workflows are produced by converting the generated .ps file (the tool returns example conversion commands).

For machine introspection and robust agent planning, use:

• swmf_list_tool_capabilities

What it does:

• parses a narrow natural-language request (variable, cut plane, movie format)
• suggests shell commands to combine output files into one .outs
• returns an IDL script text that calls animate_data and saves MP4
• suggests an execution sequence

What it does not do:

• does not execute shell commands
• does not create files

Example request:

• please visualize and animate U in SC z=0 cuts and save as mp4 video

Typical prepared shell commands:

• cd /path/to/run_or_output_dir
• cat *z=0*.out > z=0.outs
• IDL_PATH="/path/to/SWMF/share/IDL/General:${IDL_PATH:-}" IDL_STARTUP=idlrc idl < animate_z0_u_animation.pro

Example returned IDL script text:

filename='z=0.outs'
func='u'
plotmode='contbar'
plottitle='U in SC z=0 cut'
savemovie='mp4'
videofile='z0_u_animation'
videorate=10
showmovie='n'
animate_data

Notes:

• the tool assumes you run IDL from the directory that contains output files
• if SWMF root cannot be resolved, the tool still prepares output but warns that IDL_PATH may need manual setup
• patterns for combining files are heuristic and may need manual adjustment for your run

Fixing missing component versions

Validation can fail when PARAM.in references real components (for example SC) but the SWMF build only includes Empty component versions.

Use swmf_prepare_component_config to infer required components from PARAM.in (#COMPONENTMAP, #BEGIN_COMP, and #COMPONENT sections) and return a safe Config.pl suggestion.

Example:

• PARAM.in requires SC
• tool returns ./Config.pl -v=Empty,SC/BATSRUS
• then rebuild with make clean and make -j

Deterministic workflow:

• run swmf_validate_param for lightweight structure checks only
• run swmf_run_testparam for authoritative SWMF validation
• if swmf_run_testparam detects likely missing compiled component versions, it returns component_config_hint from swmf_prepare_component_config

swmf_run_testparam returns:

• swmf_root_resolved
• exit_code, stdout, stderr
• raw_testparam_output
• quick_interpretation
• likely_missing_component_versions
• no automatic remediation actions unless explicitly requested in a later tool call

Safety:

• these tools do not execute Config.pl
• these tools do not modify files
• no generic shell fallback is used outside MCP server tools

Detecting setup commands in PARAM.in

swmf_detect_setup_commands scans PARAM text for embedded setup/build commands and only accepts a strict whitelist.

Allowed commands:

• Config.pl ...
• ./Config.pl ...
• make clean
• make -j (or make -jN)

If command-like lines are present but rejected (for example containing pipes or redirection), they are returned in rejected_candidates with reasons.

swmf_validate_param remains lightweight, but now reports:

• setup_commands_detected
• detected_setup_commands
• recommended_next_tool (typically swmf_apply_setup_commands when commands are found)

Applying setup commands safely

swmf_apply_setup_commands can execute setup commands explicitly.

Safety behavior:

• never auto-runs from swmf_validate_param
• executes only whitelisted commands
• runs only in swmf_root_resolved
• no shell pipelines
• no redirects
• no background jobs
• no arbitrary command execution

Execution output includes per-command:

• normalized command
• argv
• cwd
• exit code
• stdout/stderr

Inferring nproc from job scripts

swmf_infer_job_layout reads a job script either from job_script_path or by searching run_dir for likely scripts (job.*, *.slurm, *.sbatch, or files containing #SBATCH).

It extracts/infers:

• scheduler
• machine_hint (for example job.fontera -> fontera)
• nodes
• tasks_per_node
• ntasks_total
• launch entries from ibrun
• swmf_rank_offset
• swmf_nproc

swmf_run_testparam and swmf_prepare_run now support omitting nproc; they attempt job-script inference and report the source.

Example: job.fontera

Given:

• #SBATCH -N 30
• #SBATCH --tasks-per-node 56
• ibrun -n 1 ./PostProc.pl ...
• ibrun -o 56 -n $(( (SLURM_NNODES - 1 ) *56 )) ./SWMF.exe ...

Expected inferred values:

• total allocated ranks: 1680
• postproc detected: true
• SWMF rank offset: 56
• SWMF rank count: 1624

Solar quickrun from GONG FITS

The prototype includes deterministic, safety-focused tools to support a quick workflow:

1. inspect FITS metadata (swmf_inspect_fits_magnetogram)
2. prepare heuristic SC quickrun suggestions (swmf_prepare_sc_quickrun_from_magnetogram)
3. verify external file references (swmf_validate_external_inputs)
4. run parser validation (swmf_validate_param)
5. run authoritative SWMF validation (swmf_run_testparam)

Safety model for this workflow

• no arbitrary shell execution
• no automatic Config.pl or make execution
• no automatic PARAM.in writes
• return structured suggestions and explicit warnings

Tool schemas (new)

swmf_inspect_fits_magnetogram

Input:

{
	"fits_path": "string",
	"run_dir": "string | null",
	"swmf_root": "string | null",
	"read_data": "boolean"
}

Output (stable fields):

{
	"ok": true,
	"message": "FITS metadata inspection completed.",
	"fits_path_resolved": "/abs/path/map.fits",
	"instrument": "GONG",
	"source": "NSO",
	"observation_date": "2026-03-10T00:00:00",
	"map_date": "2026-03-11T00:00:00",
	"carrington_rotation": "2311",
	"dimensions": {"naxis": 2, "naxis1": 3600.0, "naxis2": 1440.0},
	"coordinate_system_hints": {"ctype1": "CRLN-CEA", "ctype2": "CRLT-CEA"},
	"probable_map_type": "synoptic",
	"warnings": [],
	"suggested_next_tool": "swmf_prepare_sc_quickrun_from_magnetogram"
}

swmf_prepare_sc_quickrun_from_magnetogram

Input:

{
	"fits_path": "string",
	"run_dir": "string | null",
	"swmf_root": "string | null",
	"mode": "sc_steady | sc_ih_steady | sc_ih_timeaccurate",
	"nproc": "integer | null",
	"job_script_path": "string | null"
}

Output (stable fields):

{
	"ok": true,
	"heuristic": true,
	"swmf_root_resolved": "/abs/path/SWMF",
	"recommended_components": ["SC/BATSRUS", "IH/BATSRUS"],
	"recommended_config_pl_command": "./Config.pl -v=Empty,SC/BATSRUS,IH/BATSRUS",
	"recommended_build_steps": ["./Config.pl -install", "Config.pl -v=Empty,SC/BATSRUS,IH/BATSRUS", "Config.pl -nodebug -O4", "Config.pl -show", "make -j"],
	"recommended_run_steps": ["make rundir", "mv run quick_sc_ih_steady", "Scripts/TestParam.pl -n=64 quick_sc_ih_steady/PARAM.in", "cd quick_sc_ih_steady"],
	"inferred_nproc": 64,
	"inferred_nproc_source": "job_script_inference",
	"suggested_param_template_text": "...",
	"suggested_param_patch_summary": ["..."],
	"solar_alignment_hints": ["..."],
	"external_input_warnings": ["..."],
	"validation_plan": ["..."],
	"recommended_next_tool": "swmf_validate_external_inputs"
}

swmf_validate_external_inputs

Input:

{
	"param_text": "string | null",
	"param_path": "string | null",
	"run_dir": "string | null",
	"swmf_root": "string | null"
}

Output (stable fields):

{
	"ok": false,
	"missing_files": ["/abs/path/missing_gong.fits"],
	"existing_files": ["/abs/path/RESTART.in"],
	"ambiguous_references": ["$MAG_INPUT"],
	"warnings": ["Solar external input reference detected: gong_synoptic.fits. Confirm coordinate alignment and date/rotation consistency."],
	"suggested_next_tool": "swmf_validate_param"
}

swmf_generate_param_from_template (optional helper)

Input:

{
	"template_kind": "solar_sc | solar_sc_ih",
	"fits_path": "string | null",
	"run_dir": "string | null",
	"swmf_root": "string | null",
	"nproc": "integer | null"
}

Output fields:

{
	"ok": true,
	"template_found": true,
	"template_source": "/abs/path/template/PARAM_SC.in",
	"heuristic": true,
	"suggested_param_text": "...",
	"suggested_param_patch_summary": ["..."]
}

Example: SC-only run from GONG FITS

Request:

{
	"tool": "swmf_prepare_sc_quickrun_from_magnetogram",
	"arguments": {
		"fits_path": "input/gong_synoptic.fits",
		"run_dir": "/path/to/run_demo",
		"swmf_root": "/path/to/SWMF",
		"mode": "sc_steady"
	}
}

Typical highlights in result:

• recommended components include SC/BATSRUS
• output marked heuristic: true
• includes suggested PARAM template text and validation plan

Example: SC+IH run from GONG FITS

Request:

{
	"tool": "swmf_prepare_sc_quickrun_from_magnetogram",
	"arguments": {
		"fits_path": "input/gong_synoptic.fits",
		"run_dir": "/path/to/run_demo",
		"swmf_root": "/path/to/SWMF",
		"mode": "sc_ih_steady",
		"job_script_path": "job.frontera"
	}
}

Typical highlights in result:

• recommended components include SC/BATSRUS and IH/BATSRUS
• inferred_nproc_source can be job_script_inference
• returns solar_alignment_hints and external_input_warnings

Heuristic vs authoritative checks

Heuristic outputs:

• FITS map classification (probable_map_type)
• quickrun component/layout suggestions
• suggested PARAM template/patch text

Authoritative outputs:

• SWMF parser and semantic checks from Scripts/TestParam.pl via swmf_run_testparam
